Intensive Breeding Sow Farm High Energy Efficiency Exhausted Air Vent Fan Fiberglass Reinforced Plastic Direct Drive
Fiberglass fiber shell, integral molding, CAE fluid simulation design, low wind resistance, high energy efficiency, corrosion resistance. This Fiberglass Fan with Cone is specifically designed for pig farms. Made of high-strength fiberglass material, it is corrosion-resistant and anti-aging, ensuring a long service life.
Classification:
Fan Series
This Fiberglass Fan with Cone is specifically designed for pig farms. Made of high-strength fiberglass material, it is corrosion-resistant and anti-aging, ensuring a long service life. The conical fan housing design provides more uniform airflow, effectively lowering the temperature in the piggery, improving the breeding environment, and enhancing pig health and growth rate. The fan operates smoothly with low noise, is energy-efficient, and suitable for continuous long-term use. Easy to install and maintain, it simplifies farm management. Whether for summer cooling or air circulation control, this fan provides stable and reliable performance, making it an ideal choice for modern pig farm ventilation equipment.

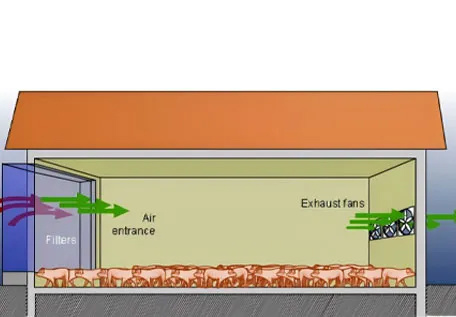

The ventilation system in a pig house primarily functions by continuously replacing the indoor air with fresh air from the outside environment. Through this process of air exchange, harmful gases, suspended dust particles, and various airborne pathogenic microorganisms accumulated inside the house are effectively removed and discharged. As a result, the concentration of pollutants is significantly reduced, which greatly lowers the risk of disease transmission and occurrence among pigs. Additionally, proper ventilation helps regulate and optimize humidity levels within the pig house, preventing excessive dampness and poor air quality. Overall, this improvement in air circulation enhances the internal environmental conditions of the facility and contributes to the creation of a healthier, cleaner, and more comfortable living environment that is well-suited to the growth and well-being of pigs.
Extremely hot weather has a significant negative influence on the health condition and productive performance of pigs; therefore, it is essential to adopt effective cooling measures to guarantee their normal growth and stable production. The FRP (fiber-reinforced plastic) fan developed by our company represents a new type of cooling equipment, which is primarily designed and widely used in negative-pressure ventilation and cooling systems.
The fiberglass exhaust fan is an advanced type of ventilation device manufactured from corrosion-resistant fiberglass material and classified as an axial-flow fan. It operates by drawing fresh air in from the side opposite the installation position, while simultaneously expelling hot, stuffy, and polluted air out of the indoor space, achieving a cooling and ventilation efficiency of more than 90%. Featuring strong resistance to rust, low operating noise, and an attractive overall design, this fan has become increasingly popular and widely favored in modern industrial facilities and agricultural farms.
This kind of fan is designed to optimize both the performance of the fan itself and the coverage area of airflow. The installation angle and position of the fan can be easily adjusted to meet the specific requirements of the farm or pasture. Multi-angle installation ensures safe and reliable operation while effectively enhancing air circulation, thereby achieving an efficient exhaust-air cooling effect. The FRP fan is built with a high-quality construction finish and incorporates a next-generation design, allowing it to provide excellent functional performance. Additionally, these high-efficiency cooling tower fans offer significant energy savings while maintaining superior quality that meets international standards.
Product Features
1. Fiberglass fiber shell, integral molding, CAE fluid simulation design, low wind resistance, high energy efficiency, corrosion resistance.
2. Split composite fan blades, stall limitation design, effectively prevent motor overload, high efficiency, large air volume, smooth and reliable operation;
3. Direct-drive transmission structure, high strength, strong stability; DFA assembly design, simple, reliable, maintenance-free.
4. Domestic and foreign famous brand motors, imported brand bearings, high transmission efficiency, quality is guaranteed.
5. T-shape shutter, with Airfoil wing-type design louvers, effectively reduces wind resistance, improves ventilation and airtightness;.
6. High-strength hot-dip galvanized protective mesh, durable, corrosion-resistant, suitable for a variety of high-humidity, corrosive gas environments.
Ventilation Control System
Fans are a vital component of mechanical ventilation systems in pig farms. They are the power source for air exchange, which is crucial for creating a healthy environment for the pigs and farm staff. High-quality pig farm fans are essential for ensuring the proper functioning of the farm's mechanical ventilation equipment.
Inefficient fans can add to production costs in two ways, The most obvious cost is wasted energy that is expended while using an inefficient fan. Othelcost can be due to poor air quality in the piggery, Fans that are inefficient or mismanaged may cause air quality to diminish. whichwillead pigs more susceptible to disease and less-than-optimal growth and feed conversion. So selecting an energy-efficient fan is important for swine production.
Fans are an important component of mechanically ventilated facilities for pig farms, They are the driving force behind the exchange of air that is necessary to create a healthy environment for pigs and associated farm employees. Good quality pig farm fans are essential for the proper performance of swine mechanical ventilation equipment. inefficient fans can add to production costs in two ways, The most obvious cost is wasted energy that is expended while using an inefficient fan, The cost can be due to poor air quality in the piggery, Fans that are insufficient or mismanaged may cause air quality to diminish, which lead pigs more susceptible to disease and less-than-optimal growth and feed conversion. So selecting energy energy-efficient fan is important for swine production.
How to Choose a Good-performance FRP Fan for Pig Farms
1 . Air Exhausting Issues:
Air exhausting rate is an important parameter indicating the ventilating-cooling effect of FRP negative. pressure fan. it is expressed as the volume of air movement per unit of time and its standard unit is cubic feet per minute (cfm)Under the condition of the same power consumption and specification, the fan with a higher air exhausting rate has a better ventilating-cooling effect.
2. Power Issues:
As mentioned above, the working performance of the FRP negative-pressure fan is a result of its air exhaust rate, so high power does not mean a good ventilating-cooling effect and high power can increase the electricity waste and investment cost.
3. Cooling Issues:
It is important to note that the FRP negative-pressure fan has no refrigeration function, and it completes pig farm
ventilating and cooling through air convection and air exchange caused by negative pressure.
Product Applications
Technical Parameters
| Model Number | Power | 0Pa | 25Pa | 50pa | 75pa | ||||
| （W) | |||||||||
| Air volume | Efficiency ratio | Air volume | Efficiency ratio | Air volume | Efficiency ratio | Air volume | Efficiency ratio | ||
| （m³/h） | （m³/h）/w | （m³/h） | （m³/h)/w | （m³/h） | （m³/h）/w | （m³/h） | （m³/h）/w | ||
| 55-inch fan | 1.5 | 62600 | 34.9 | 57100 | 28.7 | 51000 | 23.8 | 43400 | 19.3 |
| 51-inch fan | 1.1 | 47800 | 38.8 | 42900 | 31.7 | 37100 | 25.4 | 29700 | 19.4 |
| 36-inch fan | 0.75 | 26600 | 32.9 | 24700 | 27 | 22500 | 22 | 20200 | 17.9 |
| 24-inch fan | 0.37 | 11900 | 20.6 | 10800 | 18 | 9400 | 15.3 | 7500 | 12.5 |

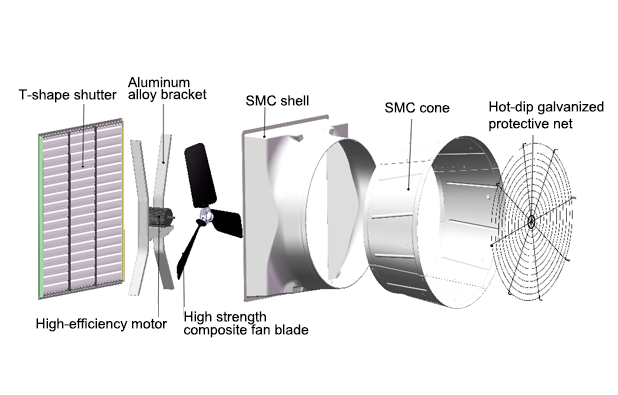

Product Composition
Product Drawings
Advantages
Fan Casing
The casing is made of high-strength,corrosion-resistant fiberglass materialand coated with a glossy finish on the surface, giving it an elegant and stylish appearance.
Fan Motor
It uses an interationally advanced, highlyefficient fully enclosed direct aluminumshell motor that never rusts, effectivelypreventing energy losses due to beltcreep, breakage, and maintenance costs.
Fan Motor
It uses an interationally advanced, highlyefficient fully enclosed direct aluminumshell motor that never rusts, effectivelypreventing energy losses due to beltcreep, breakage, and maintenance costs.
Hot-dip Galvanized Net
Durable and corrosion-resistant,suitable for various high humidity,Corrosive gas environment.
Blades
1. The fan blades are made of high quality plastic, beautiful appearance, low noise.
2. Reasonable fan blade angle design, large air volume and high efficiency.
| Ring Control System - Fiberglass Fans - Direct Drive | |||
| Serial No. | Characteristic | Descriptive | Remark |
| 1 | Color | white | Mandatory field |
| 2 | Typology | Pig farming-environmental control | |
| 3 | Use | Disclose information | |
| 4 | Material | Glass fiber reinforced plastic shell, nylon fan blade, aluminum alloy bracket | |
| 5 | Surface treatment | ||
| 6 | Norm | 0.37KW/0.75KW/1.1KW/1.5KW | |
| 7 | Customizable | Customizable | |
| 8 | Model number | 24 inch, 36 inch, 51 inch, 55 inch | |
| 9 | Accreditation | ||
| 10 | Type of transportation | ||
| 11 | Production capacity | 3000 units/month | |
| 12 | Accessory | Related products or accessories | |
| 13 | Warranty Time | 1 year | |
| 14 | Accoutrements | Qingdao, subprovincial city in Shandong | |
| 15 | After-sales service | Technical support, etc. | |
| 16 | Logo | FaMou | |
| 17 | Trade assurances | Yes | |
| 18 | Main selling points | ||
| 19 | Course of events | Axial | Optional |
| 20 | Stresses | Suction | |
| 21 | Current category | AC | |
| 22 | Input voltage | 380、220 | |
| 23 | Additional favorable properties of the product are added on their own | ||
What Makes FAMOU So Different From Other Suppliers?
Providing Customers With The Best Breeding Equipment Project
Design Team
With a professional design team, the existing R & D staff of more than 20 people, more than 80% of the domestic professional colleges and universities with bachelor's degree or above, per capita experience of more than 5 years, with a wealth of experience in the design of individual products, EPC overall design.
With Ample Experience
We have many years of experience in EPC design, production equipment and services for livestock and poultry farms. As a livestock and poultry farming solution provider, the company has formed a perfect product system and solution system in service and practice.
Technical Strength
With technology research and development as the core, based on the development trend of the industry, we constantly research and develop new products, new technologies and new processes, and have been awarded many honors such as “National High-tech Enterprise”. There are more than 30 patents of invention and utility model.
Complete Product System
The company has a strict product quality control system, dedicated to creating high-quality projects for customers.
Meticulous Level of Service
Provide detailed pre-sales consulting services, installation services and after-sales services for your farms
Wide Range of Business
Sales and service network all over the world, high-quality equipment has been recognized by global users, attracting customers from all over the world to visit!
