Livestock and Poultry Farm Automatic Feeding Line Systems - 102mm Chain-disc Feed Conveying System

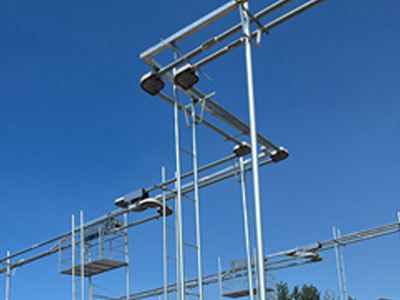

It is mainly suitable for high altitude feeding in the factory, which reduces the cost while meeting the feed conveying requirements of pig farms.
Keywords:
Classification:
Feeding line series
The system is automated and programmed to distribute the feed accurately to each feeding station in the pig barn. It operates by conveying the feed through the pipes, rotating discs, and chains, delivering the feed to the feeding stations in a controlled and efficient manner.
The feeding system can be customized to meet the specific dietary needs of different groups of pigs, ensuring that each pig receives the appropriate type and amount of feed. This personalized feeding approach helps in improving the health and growth of the pigs.
The pig disc chain automatic feeding system streamlines the feeding process on the farm, reduces labor requirements, and enhances efficiency and productivity in pig farming operations. It represents a technological advancement in pig farming that contributes to better management practices and improved overall performance of the farm.
Product Features
● It is mainly suitable for high altitude feeding in the factory, which reduces the cost while meeting the feed conveying requirements of pig farms.
● Material trucks do not enter the factory to ensure biosecurity.
● Realize long distance (200m), high material capacity (5T/h) conveying, cost-effective.

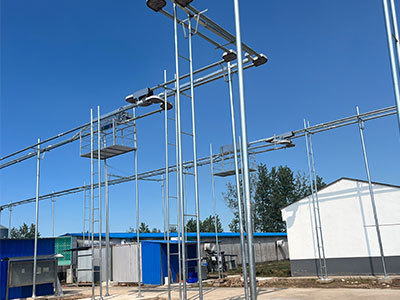

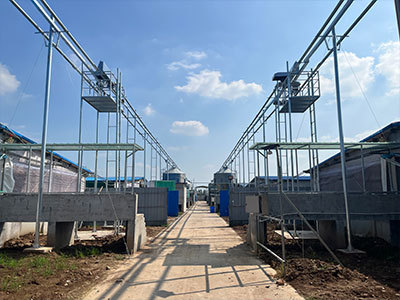

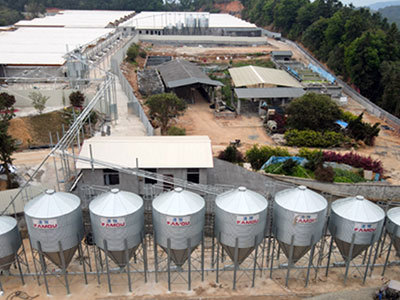

Product Applications
Technical Parameters

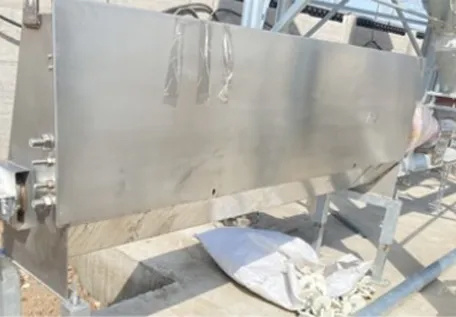

Drive system
● Stainless steel 430 shell, shell wall thickness of 3mm, good rustproof performance.
● Adopt straight gear reducer, more stable operation and longer life than traditional worm gear reducer.
● High-strength tensile spring to realize effective protection of the drive stroke, reduce the number of maintenance, and extend the service life.
● Equipped with three travel switches for door protection, chain loosening protection and chain tightening protection, combined with automatic tensioning and abnormal stopping device to ensure safe and reliable driving.
● Combined with the automatic tensioning and abnormal stop device, it ensures the safe and reliable operation of the drive.
● The anti-accumulation design at the lower end of the drive ensures smooth feeding and no accumulation of materials.

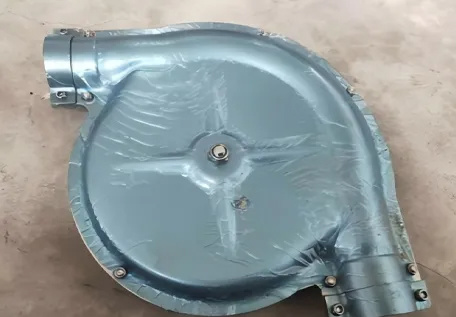

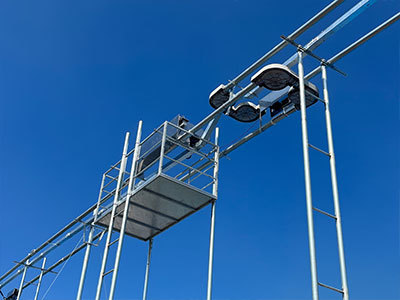

Corner
● The shell is made of ZL102 cast aluminum, beautiful and rustproof.
● All stainless steel 304 standard parts.
● Excellent sealing performance (ring groove with gasket structure, waterproof).
Product Nature
Livestock and Poultry Farm Automatic Feeding Line Systems - 102mm Chain-disc Feed Conveying System | |||
Serial No. | Characteristic | Descriptive | Note |
1 | Color | Stainless steel original color, plastic parts in blue and white | Mandatory field |
2 | Typology | Pig rearing - feeding | |
3 | Use | Automatic feeding | |
4 | Material | Stainless steel, plastic, iron | |
5 | Surface treatment | Hot-dip galvanized parts, zinc layer thickness 50 microns, the rest of the material is not treated | |
6 | Norm | / | |
7 | Customizable | customizable | |
8 | Model number | FC102 | |
9 | Accreditation | / | |
10 | Type of transportation | pallets | |
11 | Production capacity | 3000 m/month | |
12 | Accessory | Drive mainframe, feed tube, stopper, corner, support, etc. | |
13 | Warranty Time | 1 year | |
14 | Accoutrements | Qingdao, subprovincial city in Shandong | |
15 | After-sales service | Technical Support | |
16 | Logo | FaMou | |
17 | Trade assurances | Yes | |
18 | Main selling points | Smooth, safe and stable operation, high strength and corrosion resistance | |
19 | Additional favorable properties of the product are added on their own | ||

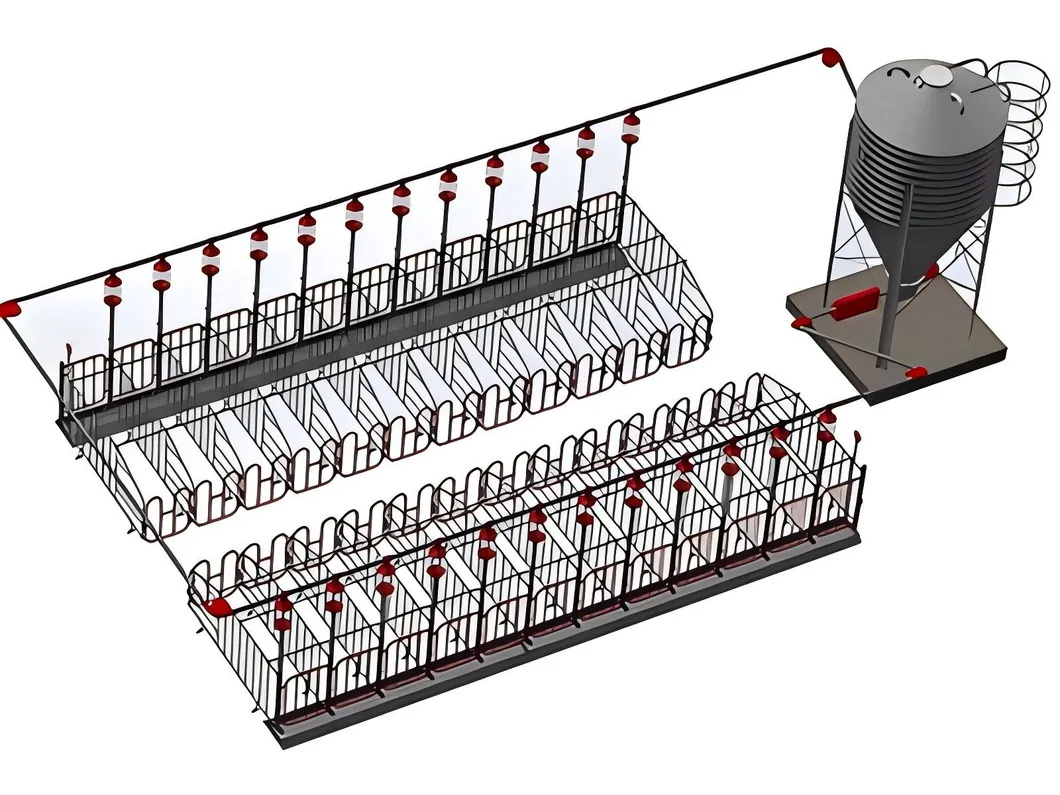

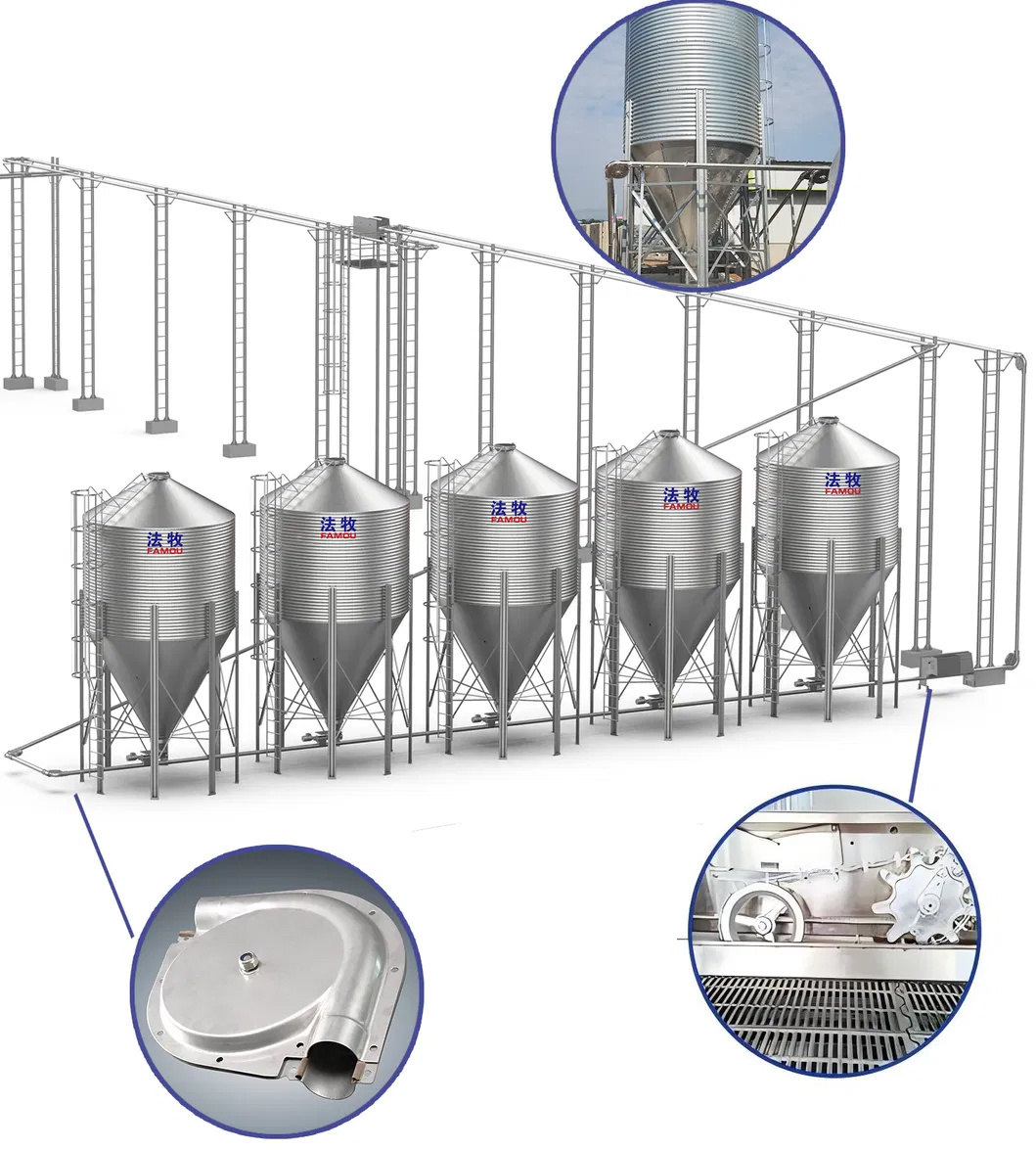

Product Structure
Advantages
Drive Unit
A steel sprocket wheel drives the chain as it passes through the drive unit while the chain tensioner assembly maintains proper tension on the chain for optimal performance
Two safety switches; one located on the chain tensioner and the other on the access cover, prevent chances for injury or damage to the system's components
A clamping safety rod provides additional increased operator safety compared to cable or spring options when the drive unit is open

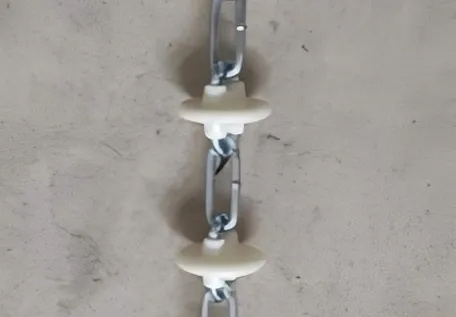

Disk Chain
Systems feature superior grade hardened steel chain that is stronger than galvanized chain, which is weakened by heat during the galvanizing process
Our multi-directional chain cannot be incorrectly installed and eliminates the need for frequent tightening common with cable style systems
The low friction disks gently convey all common pig ration mixtures while minimizing damage or feed separation compared to flexible auger systems
Clean Corner Wheel
The black corner wheel housing is fabricated from a tough reinforced polymer with a dome peaked lid to prevent the accumulation of water or moisture
The transparent swing down door is molded from impact resistant polycarbonate with 3 toggle latches that hold it securely in place
Molded metal inserts with rubber seals reinforce critical axle wear points to prevent cracking and eliminate moisture from entering the housing
Clean Corner Wheel
The black corner wheel housing is fabricated from a tough reinforced polymer with a dome peaked lid to prevent the accumulation of water or moisture
The transparent swing down door is molded from impact resistant polycarbonate with 3 toggle latches that hold it securely in place
Molded metal inserts with rubber seals reinforce critical axle wear points to prevent cracking and eliminate moisture from entering the housing

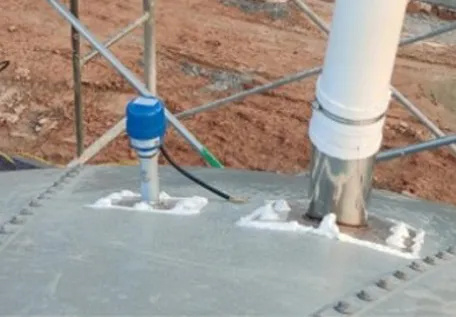

Proximity Switch
Nursery and finishing pigs can be sorted from any pen as needed since it doesn't rely on a hopper/feeder switch to activate feed cycles Empty farrowing rooms or stalls will not create issues with pig movements and feed availability
Feed availability is easily controlled at each individual output location by opening/closing the feed drop or sow drop
Available kit and replacement parts install directly on the feed line for easy access and adjustment
