Product Series
Bar system Pig Breeding Farrowing Crates Sow Pig Swine crate Livestock Animal Cages Pig Pen
Metal flooring for sows, strong and durable, and plastic flooring for piglets, avoiding the piglets' abdomen from being cooled.
Classification:
Piggery Cage System
Product Features
● Metal flooring for sows, strong and durable, and plastic flooring for piglets, avoiding the piglets' abdomen from being cooled.
● The width and length of the sows' stalls can be adjusted to suit the size of sows of different litter sizes.
● Sow stalls are equipped with anti-pressure bars to slow down the lying speed of sows and reduce the pressure injury to piglets.
● Side with restriction bar or isolation rake, convenient for piglets to feed.
● PVC fence, good heat preservation, easy to clean and disinfect, one-piece back door, convenient to drive pigs.
Product Applications
Technical Parameters
1. The whole piece of the pen is hot dipped zinc, and the average thickness of the zinc layer is not less than 80μm.
2. The overall specification is 2.4*1.8m, the sow limit pen is 2.2x0.6*1.1m, the front and back doors of the sow pen can be rotated from both sides to open or completely removed. The back door adopts curved shape, which can adjust the length of the sow pen.
3. Sow pen position is 1 inch pipe, front bracket is 1 inch pipe, front door outer frame is 6 minutes pipe, back door outer frame is 1 inch pipe.
4. Delivery pen has reversible anti-pressure bar; the outside of delivery pen has lifting curved iron pipe, the height can be adjusted.
5. The fence is made of 35mm PVC hollow board, the height of the fence is 500mm, and there is U-type wrapping at the link of PVC board.
6. The fixing of the foot and the leakage plate is made of stainless steel bolt + plastic block nut, the bolt is fixed from the top to the bottom and won't hurt the pig's feet; other fixing parts of the pen are made of stainless steel; Feeding trough size: 455mm PVC hollow plate.
7. food trough size: 455 * 370 * 250mm, stainless steel 304, wall thickness 1.2mm, can be turned outward, piglet teaching trough diameter 250mm, stainless steel;;.
8. fiberglass insulation cover specifications 1275mm * 415mm, aluminum shade diameter 200mm, high and low adjustable, insulation bulb power 175W
9. Sow position adopts three-pronged steel floor, piglet adopts plastic floor, fiberglass beam.

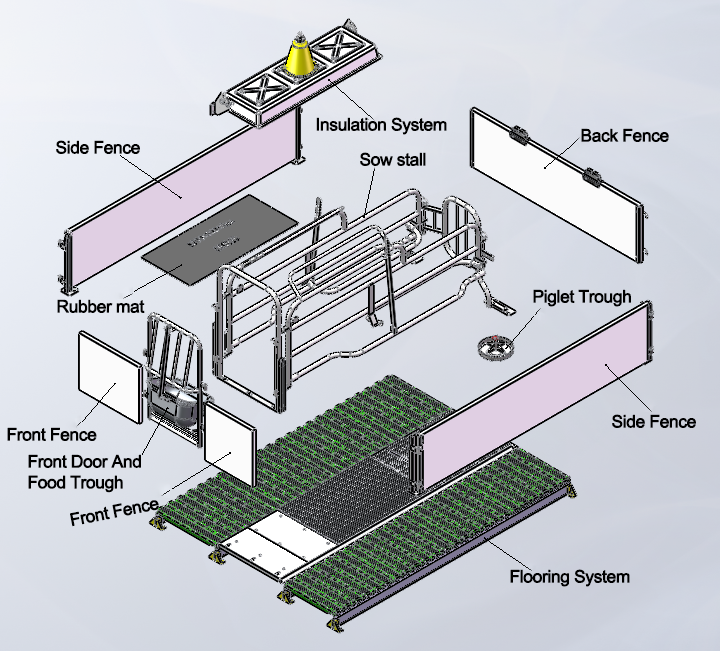

Product Composition
Product Nature
Pig pen system - birthing pen | ||
Serial No. | Characteristic | Descriptive |
1 | Color | Silver, etc. |
2 | Typology | Pig Farming - Pens |
3 | Use | DescriptionApplication: Fence |
4 | Material | Iron, stainless steel |
5 | Surface treatment | Hot-dip galvanized, average zinc layer thickness 80μm |
6 | Norm | 2400*1800*1000mm |
7 | Customizable | customizable |
8 | Model number | Model number |
9 | Accreditation | / |
10 | Type of transportation | Iron pallet packaging |
11 | Production capacity | 500 tons/month |
12 | Accessory | Tanks, heat-retaining covers, fixings |
13 | Warranty Time | 1 year |
14 | Accoutrements | Qingdao, subprovincial city in Shandong |
15 | After-sales service | Delivery of training |
16 | Logo | FaMou |
17 | Trade assurances | yes |
18 | Main selling points | Easy to operate, stable and durable |
